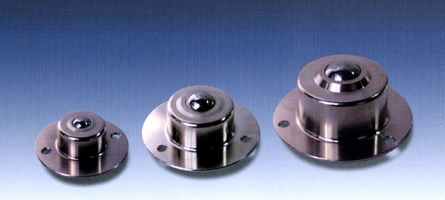

각종 중량물을 이동할 때 적합한 MR형 프랜지 Type


- 몸체는 스틸에 니켈도금하여 사용
- 절삭가공품으로, 중하중에도 강도를 유지하며, 정밀하고 튼튼하다.
- 중량물도 가볍게 360˚ 방향이동이 가능하다
- 트레이를 열처리하므로서, 중하중에도 강도를 유지한다.
- Ball을 플라스틱, 스테인레스, 스틸로 만들 수 있다.
- BALL TRANSFER 사용하중은 정지하중의 50%이하에서 사용 가능합니다.

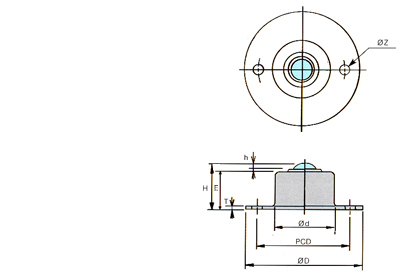

품명 볼규격 H E h T Ød ØD PCD ØZ 自重 靜止荷重
MR5 3/16" 8.0 6.4 1.5 2.0 12.0 25.0 19.0 2-Ø2.5 0.008kg 25kg
MR6 1/4" 10.0 8.1 1.9 2.0 14.0 28.0 22.0 2-Ø2.5 0.03kg 35kg
MR8 5/16" 14.0 11.0 2.5 2.0 19.0 39.0 30.0 2-Ø3.0 0.04kg 50kg
MR9 11/32" 12.0 9.5 2.5 2.0 15.0 27.0 21.0 2-Ø3.5 0.03kg 60kg
MR10 3/8" 17.0 14.3 2.0 2.0 23.0 45.0 35.0 2-Ø4.0 0.06kg 70kg
MR11 13/32" 15.0 11.5 3.5 2.0 18.0 30.0 24.0 2-Ø3.5 0.035kg 70kg
MR12 15/32" 18.0 14.0 4.0 2.0 19.7 35.0 28.0 2-Ø4.0 0.05KG 75kg
MR13 1/2" 20.0 15.7 3.5 2.5 28.0 50.0 40.0 3-Ø4.0 0.09kg 80kg
MR13A 1/2" 20.0 15.7 3.5 2.5 28.0 50.0 40.0 2-Ø4.0 0.09kg 80kg
MR15 5/8" 20.0 14.7 5.3 3.0 24.0 39.0 31.5 2-Ø4.5 0.05kg 90kg
MR16 5/8" 20.5 15.5 4.0 2.5 28.0 50.0 40.0 3-Ø4.0 0.12kg 120kg
MR16K 5/8" 20.5 15.5 4.0 2.5 28.0 50.0 40.0 2-Ø4.0 0.12kg 120kg
MR19A 3/4" 25.0 18.7 6.3 4.0 30.0 48.0 39.0 2-Ø5.5 0.12kg 140kg
MR19C 3/4" 25.5 19.2 6.3 4.0 33.0 56.0 46.0 2-Ø5.0 0.20kg 150kg
MR19K 3/4" 24.0 10.4 5.6 3.0 41.0 65.0 56.0 3-Ø5.0 0.16kg 150kg
MR19KA 3/4" 24.0 10.4 5.6 3.0 41.0 65.0 56.0 2-Ø5.0 0.16kg 150kg
MR19 3/4" 30.0 23.0 4.0 3.0 41.0 65.0 56.0 3-Ø5.0 0.28kg 180kg
MR19D 3/4" 30.0 23.0 4.0 3.0 41.0 65.0 56.0 2-Ø5.0 0.28kg 180kg
MR19E 3/4" 30.0 23.0 4.0 3.0 41.0 65.0 56.0 4-Ø5.0 0.28kg 180kg
MR25C 1" 31.0 20.5 8.5 3.0 41.0 65.0 56.0 2-Ø5.0 0.28kg 200kg
MR25D 1" 32.0 22.0 8.0 4.0 50.0 78.0 68.0 3-Ø6.0 0.45kg 200kg
MR25DA 1" 32.0 22.0 8.0 4.0 50.0 78.0 68.0 2-Ø6.0 0.45kg 200kg
MR25K 1" 31.0 20.5 8.5 3.0 41.0 65.0 56.0 3-Ø5.0 0.28kg 200kg
MR25A 1" 32.0 22.0 8.0 4.0 50.0 78.0 66.5 2-Ø6.5 0.45kg 200kg
MR25AC 1" 32.0 22.0 8.0 4.0 50.0 78.0 66.5 3-Ø6.5 0.45kg 200kg
MR25E 1" 35.0 24.5 8.5 4.0 44.0 74.0 60.0 2-Ø5.5 0.5kg 200kg
MR25G 1" 40.0 29.5 8.5 4.0 40.0 65.0 54.0 3-Ø6.0 0.55kg 200kg
MR30K 1 1/4" 40.0 27.1 9.5 5.0 53.0 85.0 70.0 2-Ø7.0 0.80kg 330kg
MR30KA 1 1/4" 40.0 27.1 9.5 5.0 53.0 85.0 70.0 3-Ø7.0 0.80kg 330kg
MR30A 1 1/4" 48.0 35.4 9.5 6.0 63.0 95.0 80.0 4-Ø7.0 1.40kg 330kg
MR30C 1 1/4" 50.0 36.1 9.5 6.0 46.0 70.0 60.0 3-Ø6.0 1.50kg 330kg
MR38A 1 1/2" 46.0 34.0 12.0 6.0 63.0 102.0 87.7 4-Ø7.0 1.20kg 350kg
MR38C 1 1/2" 60.0 42.6 11.4 6.0 57.5 92.0 75.0 4-Ø8.0 1.5kg 350kg
MR38K 1 1/2" 60.0 42.6 10 6.0 70.0 110.0 94.0 4-Ø7.0 1.63kg 400kg
MR45 1 3/4" 70.0 54.0 13.0 10.0 89.0 140.0 120.0 4-Ø11.0 3.50kg 450kg
MR51K 2" 80.0 59.6 15 10.0 95.0 140.0 120.0 4-Ø11.0 4.20kg 500kg
MR76K 3" 120.0 100.0 20.0 10.0 130.0 180.0 155.0 4-Ø11.0 10.8kg 1,000kg
MR100K 4" 135.0 100.0 29.0 12.0 180.0 244.0 218.0 4-Ø14.0 20.0kg 1,600kg
